Factory-Direct Product Systems
Waterproof XPS Backer Board Systems
One certified core material, six application systems — from shower walls to underfloor heating.
ICC & CE certified · EN 13164 compliant · Custom sizes & OEM
XPS Tile Backer Boards
Factory-direct waterproof XPS backer boards in 4–50 mm for tiling in showers, bathrooms and wet rooms. ICC & CE certified, EN 13164 compliant.

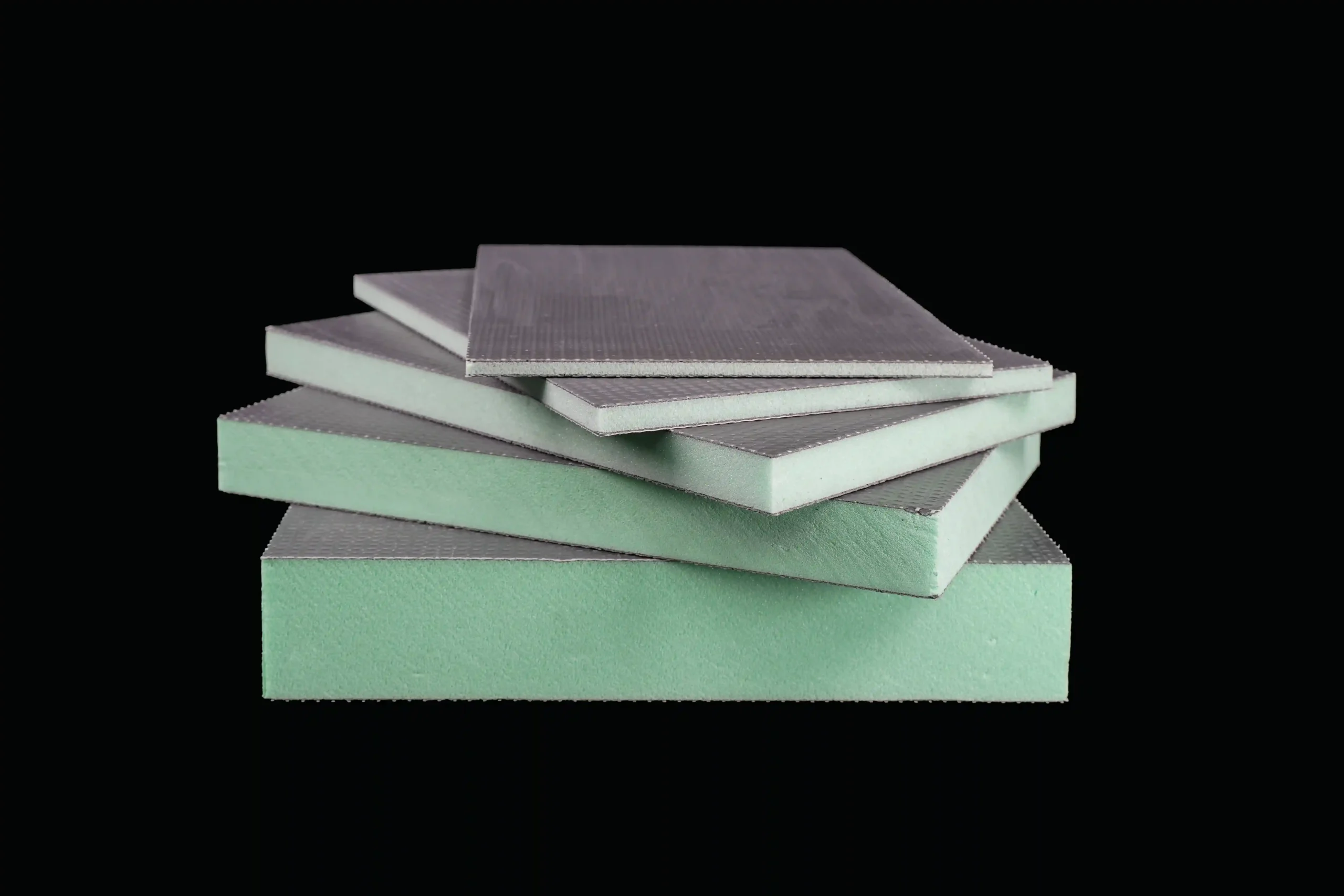

XPS Tile Backer Board 4-50mm
High-density waterproof XPS backer board with cementitious coating. 4–50 mm thickness, custom sizes, ICC & CE certified factory.
Pink XPS Tile Backer Board 10mm
Same tested board, in pink. 10 mm, EN 13164 batch-tested, ICC & CE certified. Custom colors for volume orders.
XPS Tile Backer Board 20mm
The heavy-duty board: floors, uneven walls, pipe boxing. 0.8% absorption, 361 kPa, EN 13164 tested.
Wet Room Elements
Preformed shower trays, recessed niches, curbs, benches and bathtub panels made from waterproof XPS board for fast wet room construction.
Preformed XPS Shower Tray
Preformed XPS shower tray with factory-set slope, ready to tile straight out of the box. Custom sizes, cut to drawing.
Recessed XPS Shower Niche
Preformed recessed XPS shower niche: one molded coated unit, no inside seams. Set between studs, tape the perimeter, tile. Custom sizes.
Preformed XPS Bathtub Panel
Preformed XPS bathtub panel, waterproof core, ready to tile. Cut to your tub’s height and length. Hotel and residential projects, OEM.
Underfloor Heating Boards
Grooved XPS panels for water underfloor heating — pre-cut pipe channels ensure even heat distribution beneath tile and stone floors.
Grooved XPS Underfloor Heating Board
Grooved XPS underfloor heating board with grooves routed to your loop plan. Pipes press-fit, screed and tile over. Custom sizes, factory-direct.
Grooved XPS Heating Panel 30mm
30 mm grooved XPS heating panel with pre-cut straight pipe channels for water underfloor heating. Press-fit install, custom sheet sizes, factory-direct.
XPS Floor Heating Board
XPS floor heating board: flat insulation substrate or grooved to drawing for water underfloor heating. 0.030 W/(m·K), custom sizes, factory-direct.
Custom XPS Boards
Curved, pipe-boxing and custom-cut XPS boards fabricated to your drawings for radius walls, columns and prefab bathrooms.
Curved XPS Backer Board
Curved XPS backer board with kerf-cut V-notches: ships flat, rolls into radius walls, columns and shower enclosures on site. Sealed and tiled like any board. Cut to drawing.
Custom XPS Backer Board Cut to Drawing – CNC Fabrication
Custom XPS board cut and routed to your drawings: notches, slots, arcs and shaped edges. Ready to fix on arrival. OEM supply, factory-direct.
XPS Pipe Boxing Board for Concealed Pipes – Waterproof & Tileable
Pipe boxing board in preformed L/U profiles or cut on site. Boxes in soil pipes, takes tile directly, saves space and weight over brick. Custom sizes.
Accessories & Fixings
Self-adhesive mesh tape, washers, screws, anchors and sealants — the complete fixing system for backer board installation.
XPS Backer Board Fixing Kit – Screws, Washers & Sealing Tape
Backer board fixing kit: screws, anchors, washers, sealing tape and mesh in one counted carton. ~10 sheets per kit. OEM packaging.

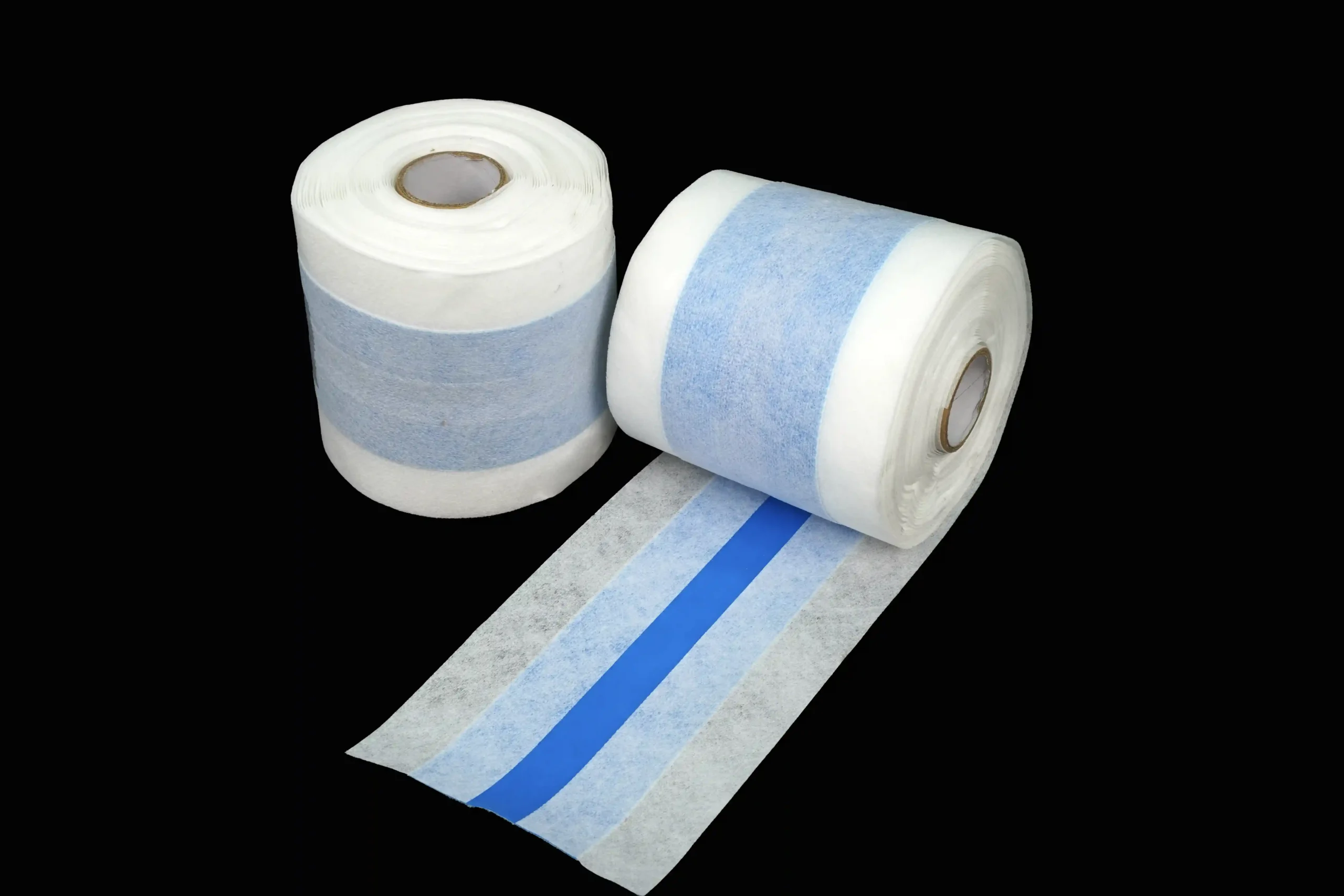

Waterproof Sealing Tape
Self-adhesive elastic waterproof sealing tape for wet room joints, corners and pipe penetrations. Bonds with tile adhesive. OEM rolls.

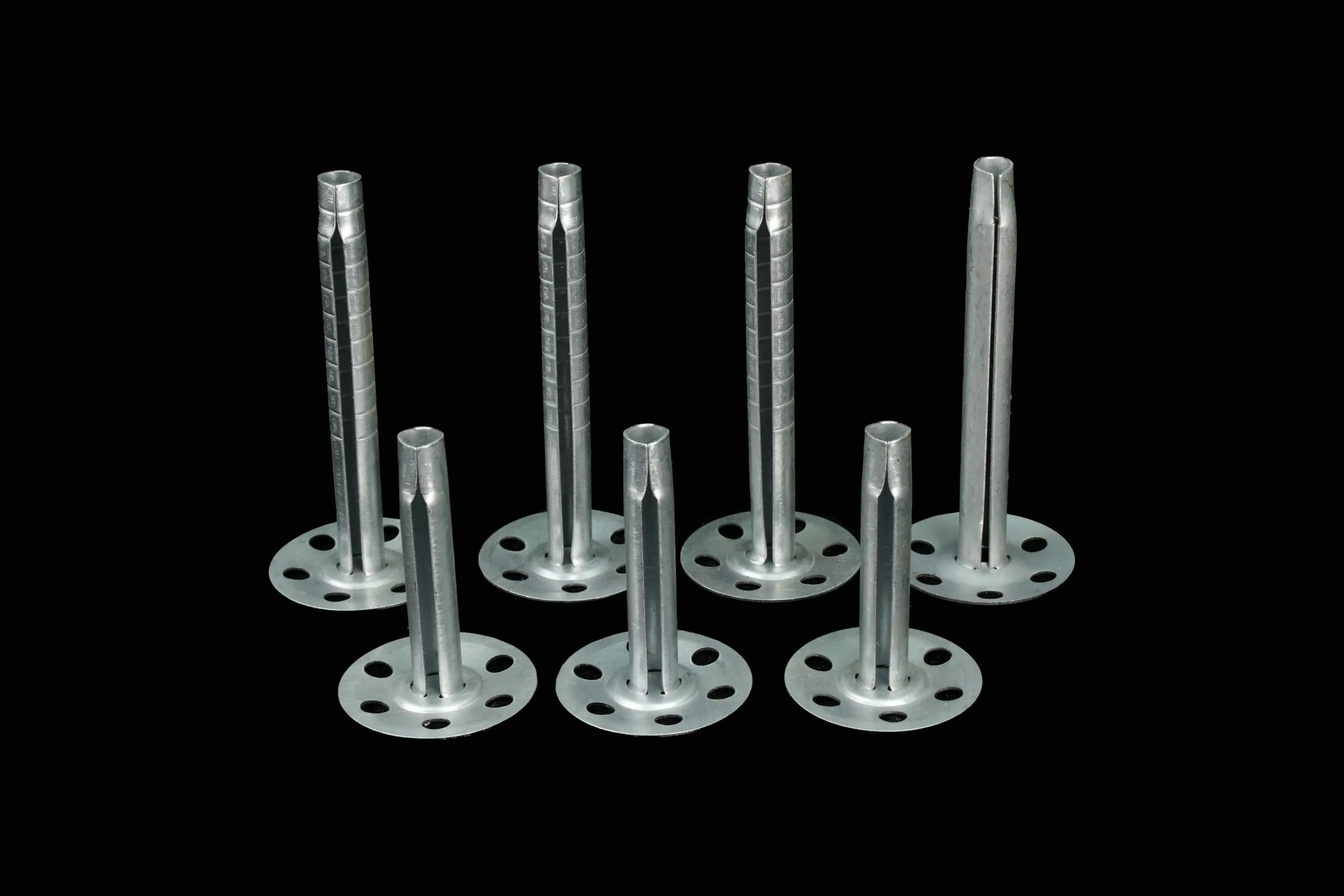

Backer Board Anchors and Washers
Anchors sized to the board (50/80/110 mm), 8 mm drill, stainless washers that sit flush. ~300 mm spacing. Bulk supply, OEM packaging.
Not sure which board goes where? See real applications >>
Material Specifications
Every batch tested to EN 13164. Full test reports available on request.
| Property | Value |
|---|---|
| Sound insulation (12 mm board) | Rw,P 23 dB |
| Bond strength between layers | 0.42 MPa (core failure) |
| Bending load | 1,842 N |
| Mold resistance | Grade 0 |
| Water absorption (96 h immersion) | 0.8% |
| Impact resistance | 10 impacts |
| Compression creep (23 °C, 40 kPa, 168 h) | 4.2% |
| Dimensional change in humidity | 0.04% |
| Antibacterial performance | E. coli 98.18% · S. aureus 98.60% |
| Surface water absorption | 62 g/m² |
| Free formaldehyde emission | 0.018 mg/(m²·h) |
| Thermal conductivity (mean 25 °C) | 0.030 W/(m·K) |
| Compressive strength (10% deformation) | 361 kPa |
Choosing the Right Thickness
Factory-Direct Pricing
Need a Custom Quote for Your Project?
Send us your drawings, sizes and quantity — our engineers reply with a technical solution and factory-direct pricing within 24 hours.
